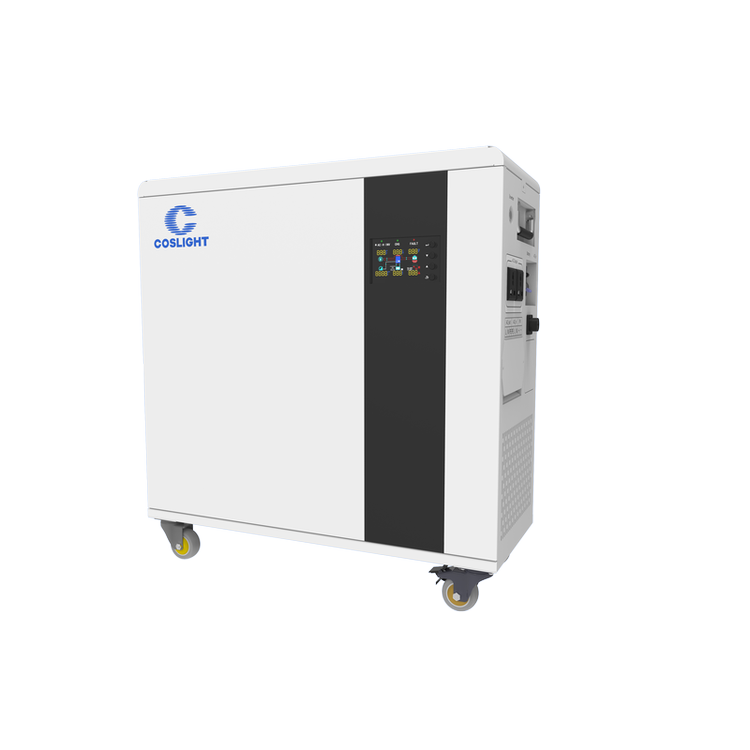

Solar Off Grid Power Supply Energy Storage System 51.2V 5KWH

Ask Lasest Price
Model Number :	CPW5000
Supply Ability :	50 Unit/Units per Month
Price :	$1,600.00/units >=50 units

Add to Cart

Product Details
Company Profile

Solar Off Grid Power Supply Energy Storage System 51.2V 5KWH

Product Specification

Brief Introduction :

CPW series is an integrated battery system for backup protection when the grid goes down.And it can be charged by either electricity from your utility or solar power. CPW has four working modes: SOL(Solar First), UEI(Utility First),SBU(Solar-Battery-Utility),SUB(Solar-Utility -Battery). These working modes are described refer to the setting part of user manual.

Models	CPW5000
Battery	Nominal Voltage	51.2V
		Voltage Range	45~57.6V
		Capacity	5KWH
		Max.discharge rate	1C
		Max.charge rate	1C
		Battery Type	Li-ion(LFP)
AC Output	Rated Power	5000W
		Surge Power	10000W
		Output Voltage	220/230/240Vac
		Output Current	22A
		Rated Frequency	50/60Hz
		VTHD	＜3%
		Output Wave	Pure Sine Wave
		Output Type	Euro Round Socket×2+Terminals
		Max. Efficiency	93%
AC Input	AC Input Voltage Range	170-280VAC
		AC Input Frequency	50/60Hz
		Max AC Charge Current(Battery)	30A(0~60A Adjustable)
PV Input	Max. PV Power(Recommended)	6000W
		Max. PV Voltage	450V
		MPPT Range	120V~430V
		Max PV Charge Current(Battery)	100A
Operating Conditions	Operating Temperature	0~55℃
		Storage Temperature	-15℃~60℃
		Humidity	5%~95%
		Cooling Strategy	Fan
		Product Weight	63kg
		Dimension [W x H x D]	585606230mm
		Packing	wooden case
		Packing Dimension [W x H x D]	630738275mm (75KG)
		Enclosure Protection Rating	IP20
		Communication	WIFI/RS485
		Warranty	2 years

Products Description

Solar Off Grid Power Supply Energy Storage System 51.2V 5KWH
