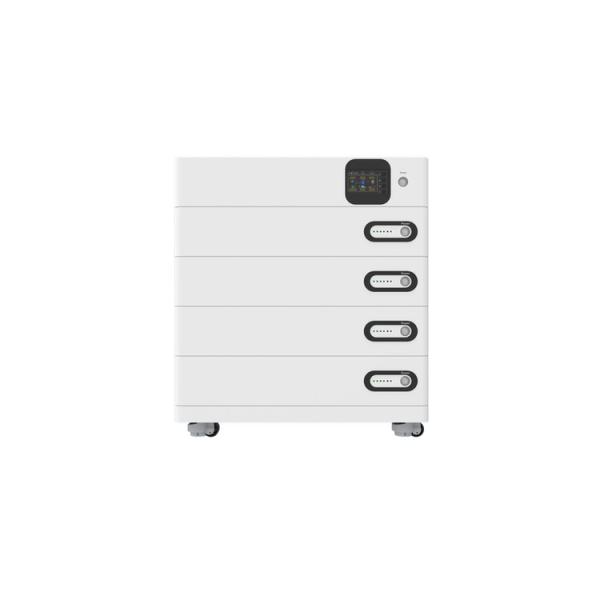

Outdoor Solar Home Energy Storage Battery 5000W IP20 Protection

Ask Lasest Price
Model Number :	CPB
Supply Ability :	50 Unit/Units per Month
Price :	$1,958.00/pieces >=50 pieces

Add to Cart

Product Details
Company Profile

Outdoor Solar Home Energy Storage Battery 5000W IP20 Protection

Product Specification

Brief Introdution

1. CPB series is a split-phase system, which is scalable so that you can provide 5 kWh of capacity up to 20 KWh per battery cabinet for flexible installation options. And it can be charged by either electricity from your utility or solar power.

CPB has four working modes: SOL(Solar First), UEI(Utility First),SBU(Solar-Battery-Utility),SUB(Solar-Utility -Battery). These
working modes are described refer to the setting part of user manual.

Battery	Nominal Voltage	51.2V
		Voltage Range	45~57.6V
		Capacity	10.24KWH ( 2.5kWH*4 )
		Max.discharge Rate	1C
		Max.charge Rate	1C
		Battery Type	Li-ion(LFP)
AC Output	Rated Power	5000W
		Surge Power	10000w
		Output Voltage	220/230/240Vac±3%
		Output Current	22A
		Rated Frequency	50/60Hz
		VTHD	＜3%
		Output Wave	Pure Sine Wave
		Output Type	Euro Round Socket×4+Terminal
		Max. Efficiency	93%
AC Input	AC Input Voltage Range	170~280Vac
		AC Input Frequency	50/60Hz
		Max AC Charge Current(Battery)	30A(0~60A Adjustable)
PV Input	Max. PV Power(Recommended)	6000W
		Max. PV Voltage	450V
		MPPT Range	120V~430V
		Max PV Charge Current(Battery)	100A
Operating Conditions	Operating Temperature	0~55℃
		Storage Temperature	-15℃~60℃
		Humidity	5%~95%
		Cooling Strategy	Fan
		Weight	Approx. 140KG
		Dimension [W x H x D, mm]	620W345D780mm
		Packing	wooden case
		Packing Dimension [W x H x D]	TBD
		IP class	IP20
		Communication	WIFI/RS485
		Warranty	3 years

Products Description

Outdoor Solar Home Energy Storage Battery 5000W IP20 Protection
