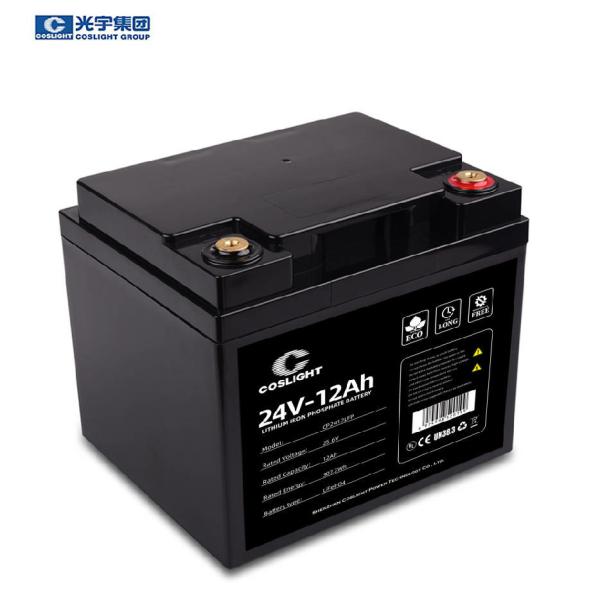

    Portable LiFePO4 Battery Pack 24V 12Ah Electric Wheelchair Battery

    Ask Lasest Price
    Brand Name : Coslight
    Model Number : 12v 12Ah
    Certification : CE UL UN EN
    Price : USD430/pc
    Payment Terms : T/T, D/A, D/P, L/C
    Supply Ability : 5000pcs per month
    Delivery Time : 10-15days
    • Product Details
    • Company Profile

    Portable LiFePO4 Battery Pack 24V 12Ah Electric Wheelchair Battery

    Portable LiFePO4 Battery Pack 24V 12Ah Electric Wheelchair Battery


    LiFePO4 battery pack 24V 12Ah for electric wheelchair battery long cycle life


    Product Information



    Main features:

    · About 10 times longer life cycle than a lead-acid battery.
    · High energy density, about 2 times more capacity with the same size
    · Fast charging and large current discharge without damaging the battery.
    · Smart battery with charging, discharging, short circuit, and temperature rising control by BMS.
    · environment-friendly products, low pollution
    · Drop-in replacement and lower TOC (Total Operation Cost) during battery life.

    Main applications of LifePO4 battery pack:


    1. Large-scale electric vehicles: electric bus, electric car, E-Tour Car
    2. Light electric car: e-bike, e-scooter,e-motorcycle, electric golf cart, e-wheelchair
    3. E-tool: electric drill, electric saw, lawnmower
    4. Remote control cars, electric boats, aircraft, toys
    5. Solar and wind power generation energy storage devices, solar systems, Telecom base Station
    6. Small medical equipment and portable equipment

    7. Solar energy lights,bicycle lights,LED lights,bright flashlight,solar street lights



    Products Description


    ELECTRICAL SPECIFICATIONS
    Nominal Voltage25.6 V
    Nominal Capacity @ 0.2C12 Ah @ 0.2C
    Energy281.6 Wh
    Resistance50mΩ
    Cycle Life2500+cycles @ 1C 100% DOD
    Efficiency99%
    Self Discharge<3% per Month
    Maximum Modules in Series/Parallels4S or 4P
    MECHANICAL SPECIFICATIONS
    Length77 ± 2 mm
    Width181 ± 2 mm
    Height170 ± 2 mm
    Weight2.5 Kg
    Case MaterialABS
    TerminalM5
    Enclosure ProtectionIP65
    CHARGE & DISCHARGE SPECIFICATIONS
    Monthly Self DischargeLess than 2%
    Efficiency of Charge100% @ 0.5 C
    Efficiency of Discharge96 - 99% @ 1 C
    Charge Voltage29.2 ± 0.2 V
    Charge Model CC & CV

    0.2C to 29.2 V ,

    then 29.2V, charge current to 0.02C

    Standard Charge Current5.5 A
    Max. Charge Current11 A
    Max. Continuous Discharge Current11 A
    Peak Discharge Current22 A (3S)
    BMS Discharge Cut-off Voltage20 V
    Charge Temperature0~45 ℃
    Discharge Temperature-20℃ to 60 ℃
    Storage Temperature-20℃ to 45 ℃
