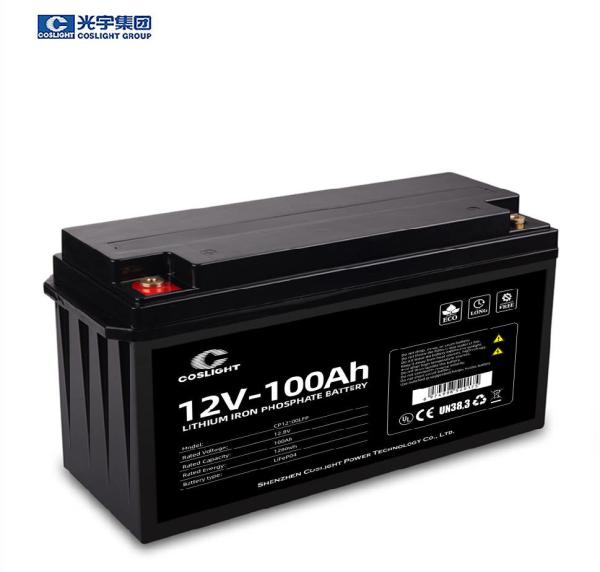

Coslight 12v100ah Lifepo4 Lithium Batteries RV Camping Solar
Battery
Lifepo4 Battery 12v 50Ah Chargeable For RV Camping Boat
Product Information
FEATURES:
1. Green energy, Non-toxic, non-polluting, wide range of raw
materials, cheap
2. Long life cycle, 2000 times at 80% DOD.
3. It without heavy metals and environment friendly.
4. Maintenance free
5. Internal BMS with full protection,battery has high voltage
protection with higher reliability.
6. No memory effect
7. High temperature performance is good
8. Capacity of single battery cell is big
9. High safety, no explosion, no fire
10. Quick charging, low self-discharge rate, ≤3%/month
Applications:
1.Energy Storage
--Solar-Wind Power System / City Grid (On/Off) / Community and
Family
2.Back-up System and UPS
--Telcom Base / CATV system / Computer Server Center / Medical
Instrumnt / Military Equipment
3.Other Applications
--Security and Electronics / Mobile POS, Mining Lihgt / Torch / LED
Light / Emergency Light
--RV Motorhome /Golf Carts Battery / Boat Marine Yachts / Electric
Skateboard / Electric bike / Electric Scooter / Electric
bicycle
--LED Backup / Engine Starting Battery,etc.
Products Description:
| ELECTRICAL SPECIFICATIONS |
| Nominal Voltage | 12.8 V |
| Nominal Capacity @ 0.2C | 100 Ah |
| Energy | 1280 Wh |
| Resistance | 50mΩ |
| Cycle Life | 2000+cycles @ 1C 80% DOD |
| Efficiency | 99% |
| Self Discharge | <3% per Month |
| Maximum Modules in Series/Parallels | 4S or 4P |
| MECHANICAL SPECIFICATIONS |
| Length | 172 ± 2 mm |
| Width | 328 ± 2 mm |
| Height | 230 ± 2 mm |
| Weight | 13.2 Kg |
| Case Material | ABS |
| Terminal | M8 Screw |
| Enclosure Protection | IP65 |
| CHARGE & DISCHARGE SPECIFICATIONS |
| Monthly Self Discharge | Less than 2% |
| Efficiency of Charge | 100% @ 0.5 C |
| Efficiency of Discharge | 96 - 99% @ 1 C |
| Charge Voltage | 14.6 ± 0.2 V |
| Charge Model CC & CV | 0.2C to 14.6 V , then 14.6V, charge current to 0.02C |
| Standard Charge Current | 25 A |
| Max. Charge Current | 50 A |
| Max. Continuous Discharge Current | 50 A |
| Peak Discharge Current | 100 A (3S) |
| BMS Discharge Cut-off Voltage | 10 V |
| Charge Temperature | 0~45 ℃ |
| Discharge Temperature | -20℃ to 60 ℃ |
| Storage Temperature | -20℃ to 45 ℃ |
FAQ:
Q1: Can I have samples to test? And what is lead time for sample
order?
A1: Yes,we can supply samples, the lead time for samples is 7-10
days.and buyer pay for sample cost and shipping cost
Q2: Do you provide after-sales service?
A2: Yes,the warranty is 1-3 years, if any quality problems on our
side in this period, we can send new one as replacement.
Q3 What is your company's advantage?
A3: We only supply high level quality of lithium battery and we
guarantee on-time shipment,we also provide excellent
after sales service.
Q4: Do you accept OEM/ODM?
A4: Yes,it is available.
Q5: What is your lead time for the mass production?
A5: General speaking, about 25-30 days depending on different items
after getting down payment and confirmation about the samples
Q6: Are you battery real capacity?
A6: All of our battery cells with Grade A,100% new and real
capacity.
Q7:Are you a factory or a trading company?
A7: we are a professional rechargeable lithium-ion battery and
LifePO4 battery manufacturer, welcome to visit.
Q8: What kind of certificates do you have?
A8: We can provide CE, ROHS, FCC, IEC62133, MSDS, UN38.3 if your
order quantity is big.
