Specification |
Model NB | 10212/24 |
Rated Power | 1000W |
Peak Power(20ms) | 3000W |
Start Motor | 1HP |
Battery Voltage | 12/24VDC |
Size(L*W*Hmm) | 410*143*210 |
Packing Size(L*W*Hmm) | 460*200*270 |
N.W.(kg) | 13 |
G.W.(kg)(Carton Packing) | 14 |
Installation Method | Tower |
Parameter |
Input | DC Input Voltage Range | 10.5-15VDC(Single battery voltage) |
AC Input Voltage Range | 73VAC~138VAC / 145VAC~275VAC |
AC Input Frequency Range | 45Hz~64Hz |
Max AC charging current | 6A~15A (Depending on the model) |
AC charging voltage | LEAD battery:Charge Voltage :14V; Float Voltage:13.8V(Single
battery voltage) |
AC charging method | Three-stage (constant current, constant voltage, floating charge) |
Output | Efficiency(Battery Mode) | ≥85% |
Output Voltage(Battery Mode) | 110VAC±2% / 220VAC±2%(Battery Mode) |
Output Frequency(Battery Mode) | 50Hz±0.5 or 60Hz±0.5 |
Output Wave(Battery Mode) | Pure Sine Wave |
Efficiency(AC Mode) | >99% |
Output Voltage(AC Mode) | 110VAC±10% / 220VAC±10% |
Output Frequency(AC Mode) | Tracking Automatically |
Output waveform distortion(Battery Mode) | ≤3%(Linear load) |
No load loss(Battery Mode) | ≤2.5% rated power |
No load loss(AC Mode) | ≤2% rated power( charger does not work in AC mode) |
No load loss(Energy saving Mode) | ≤10W |
Battery Type | Customize battery | Charge and discharge parameters of different types of batteries
(such as lithium batteries, etc.)
can be customized according to user requirements |
Protection | Battery undervoltage alarm | 11V(Single battery voltage) |
Battery undervoltage protection | 10.5V(Single battery voltage) |
Battery overvoltage alarm | 15V(Single battery voltage) |
Battery overvoltage protection | 17V(Single battery voltage) |
Battery overvoltage recovery voltage | 14.5V(Single battery voltage) |
Overload power protection | Automatic protection (battery mode), circuit breaker or insurance
(AC mode) |
Output short circuit protection | Automatic protection (battery mode), circuit breaker or insurance
(AC mode) |
Temperature protection | >90°C(Shut down output) |
Alarm | A | Normal working condition, buzzer has no alarm sound |
B | Buzzer sounds 4 times per second when battery failure, voltage
abnormality, overload protection when |
C | When the machine is turned on for the first time, the buzzer will
prompt 5 when the machine is normal inside |
Inside Solar controller
(Optional) | Charging Mode | PWM or MPPT |
Charging current | 10A/20A/30A/40A/50A/60A |
PV Input Voltage Range | PWM: 15V-44V(12V system); 30V-44V(24V system) / MPPT: 15V-120V(12V
system); 30V-120V(24V system) |
Max PV Input Voltage(At 25℃) | PWM: 50V(12V/24V system) / MPPT: 150V(12V/24V system) |
PV Array Maximum Power | 12V system: 140W/280W/420W/560W/700W/840W; 24V system:
280W/560W/840W/1120W/1400W/1680W |
Standby loss | ≤3W |
Maximum conversion efficiency | >95% |
Working Mode | Battery First/AC First/Saving Energy Mode |
Transfer Time | ≤4ms |

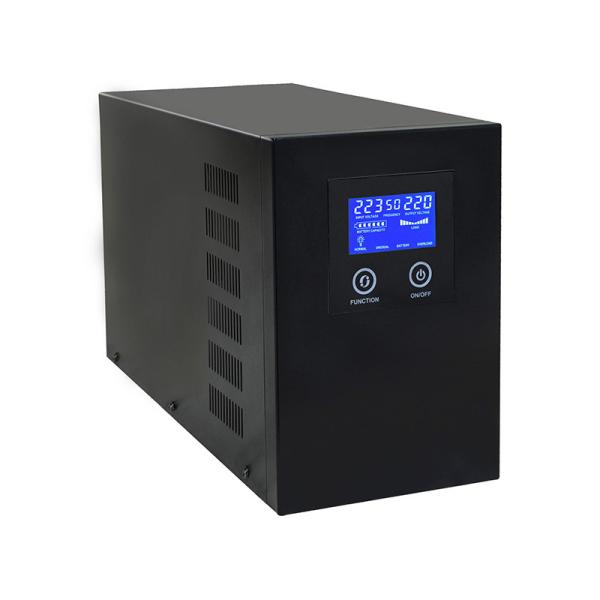

Display | LCD |
Thermal method | Cooling fan in intelligent control |
Communication | RS232(Optional) |
Environment | Operating temperature | -10℃~40℃ |
Storage temperature | -15℃~60℃ |
Noise | ≤55dB |
Elevation | 2000m(More than derating) |
Humidity | 0%~95% ,No condensation |
Warranty | 1 year |
Note: All specifications are subject to change without prior notice |
