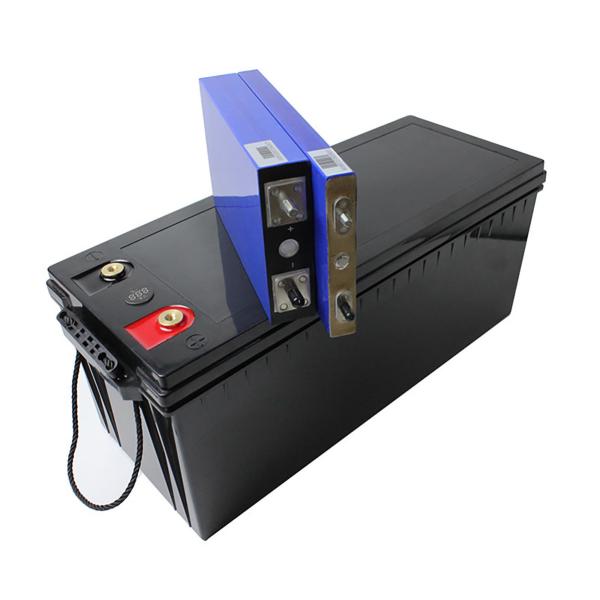

200ah Marine Lithium Battery 24v Lifepo4 Battery Pack For Rv Camper
Yachat
24v Lifepo4 Battery Pack 200ah Lithium Battery For Rv Camper Yacht
Marine Sailing Boat Solar
1 x 12V150Ah LiFePO4 Battery Module
1 x 4S-150A PCM
1 x Plastic Battery Case
2 x M8 Terminals |
PRODUCT SPECIFICATION-12V 24v 48v 80ah 120ah 150ah 200Ah golf cart
lithium li ion battery |
Normal Voltage | 12.8V |
Normal Capacity | 150Ah |
Battery Energy | 1920Wh |
Inner Resistance | < 60mΩ |
Battery Cycle Life | 2000 Times @100%DOD
6000 Times @80%DOD |
Cell Configuration | LiFePO4 26650 3.2V 3200mAh-4S47P |
Reference Battery Size | (342±1)*(173±1)*(212±1) mm |
Reference Battery Weight | 18.2±0.2 kg |
Battery Encapsulation | Plastic Case |
Charge Voltage | 14.4V |
Charge Mode | CC/CV |
Normal Charge Current | <=50A |
Normal Discharge Current | 75A |
Max. Continuous Output Current | 150A |
Max. Continuous Output Power | 1920W |
Passive Protection Function | Over charge protection; Over discharge protection; Over
current protection, etc |
Operation Temperature Range | Charge: 0'C---45'C
Discharge : -20'C---60'C |
Battery Storage Temperature | -20'C---25'C |
Individual Cell Approval | CE / RoHS / UN38.3 / UL 1642 / IEC 62133 / CB / KC / BIS |
Safety performance classification-12V 24v 48v 80ah 120ah 150ah
200Ah golf cart lithium li-ion battery
(1) Resistance to heavy loads. The battery pack shall be tested
according to the regulations and shall not ignite or explode.
(2) Resistance to thermal shock. The battery pack shall be tested
according to the regulations and shall not ignite or explode.
(3) Anti-overcharge. The battery module shall be tested according
to the regulations and shall not ignite or explode.
(4) Resistance to over-discharge. The battery module shall be
tested according to the regulations and shall not ignite or
explode.
(5) Resistance to short circuit. The battery module shall be tested
according to the regulations and shall not ignite or explode.
(6) High-temperature storage. The battery shall be tested according
to the regulations and shall not leak, smoke, catch fire or
explode.
(7) Anti-heating. The battery module is tested according to the
regulations. No part of the explosion battery penetrates the
screen, and some or all of the batteries protrude from the screen.
(8) Anti-puncture. The battery pack shall be tested according to
the regulations and shall not ignite or explode.
(9) Anti-extrusion. The battery module shall be tested according to
the regulations and shall not ignite or explode.
(10) Resistance to low pressure. The battery pack shall be tested
by regulations and shall not leak, smoke, catch fire or explode.
(11) Constant damp heat. After the battery pack is tested according
to the regulations, its appearance shall be free from obvious
deformation, rust, smoke, or explosion, and its capacity shall not
be less than 90% of the rated value.
(12) Anti-vibration. The battery pack shall be tested according to
the regulations, and its appearance shall be free from obvious
damage, liquid leakage, smoke, or explosion, and it can work
normally.
(13) Anti-collision. The battery pack shall be tested according to
the regulations, and its appearance shall be free from obvious
damage, liquid leakage, smoke, or explosion, and it can work
normally.
(14) Temperature cycling. The battery pack shall be tested by the
provisions of 6.6.15, which shall not leak, smoke, ignite or
explode; the appearance of the battery pack shall be free of
cracks, no loss of quality, and the capacity shall not be lower
than 70% of the initial state.
(15) Flame retardant properties. For battery packs with plastic
casing and protective cover, the test shall be carried out by the
provisions of 6.6.16. The outer casing shall comply with the
provisions of Article 8.3.2 of the GB/T2408-2008, FH-1 (horizontal
level), and 9.3.2 of FV-0 (vertical). Level) requirements.
(16) Insulation resistance. For a battery pack with a metal case,
the insulation resistance of the battery pack's metal and cathode
housings is not less than 2 MW.
