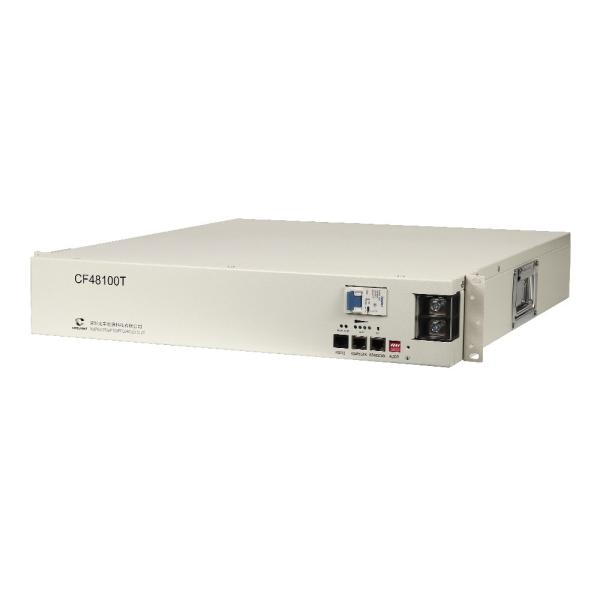

    Yacht Lithium Battery 48V 100Ah Energy Storage 48V Lifepo4 100Ah

    Ask Lasest Price
    Brand Name : Coslight
    Model Number : CF48100T1EA
    Certification : UL, CE, FCC, RoHS, Un38.3, CB, IEC62133, MSDS
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 8000pcs/week
    Delivery Time : 10~15days
    • Product Details
    • Company Profile

    Yacht Lithium Battery 48V 100Ah Energy Storage 48V Lifepo4 100Ah

    Yacht Lithium Battery 48V 100Ah Energy Storage 48V Lifepo4 100Ah


    48v 100ah lifepo4 battery energy storage 2U 3U rack mount lifepo4 battery for solar power system


    Product Introduction:


    ELECTRICAL PERFORMANCE

    Nominal Voltage

    48V

    Nominal Capacity

    100AH

    Capacity @ 20A

    300 min

    Energy

    5120Wh

    Communication

    CAN2.0/RS232/RS485

    Resistance

    ≤45 mΩ @ 50% SOC

    Efficiency

    >96%

    Module Parallel

    Up to 16 packs


    CHARGE PERFORMANCE

    Recommended Charge Current

    20A

    Maximum Charge Current

    100A

    Recommended Charge Voltage

    54V

    BMS Charge Cut-Off Voltage

    <54.7V (3.65V/Cell)

    Reconnect Voltage

    >54 V (3.6V/Cell)

    Balancing Voltage

    <54 V (3.6V/Cell)

    Maximum Batteries in Series

    15(*Consult MUST)


    MECHANICAL PERFORMANCE

    Dimension (L x W x H)

    482*480*133mm

    19.0 x 18.9 x 5.2”

    Approx. Weight

    20.0 lbs (44kg)

    Terminal Type

    DIN POST

    Terminal Torque

    80 ~ 100 in-lbs (9 ~ 11 N-m)

    Case Material

    SPPC

    Enclosure Protection

    IP65


    DISCHARGE PERFORMANCE

    Maximum Continuous Discharge Current

    100 A

    Peak Discharge Current

    110 A (3s)

    BMS Discharge Cut-Off Current

    150 A (300ms)

    Balancing open voltage

    51.7V (3.45V/Cell)

    Recommended Low Voltage Disconnect

    41.2 V (2.75V/Cell)

    BMS Discharge Cut-Off Voltage

    >30.0V (2s) (2.0V/Cell)

    Reconnect Voltage


    >37.5 V (2.5V/Cell)

    Short Circuit Protection

    250 ~ 500 μs


    TEMPERATURE PERFORMANCE

    Discharge Temperature

    -4 ~ 131 ºF (-20 ~ 55 ºC)

    Charge Temperature

    -4 ~ 113 ºF (0 ~ 45 ºC)

    Storage Temperature

    23 ~ 95 ºF (-5 ~ 35 ºC)

    BMS High Temperature Cut-Off

    149 ºF (65 ºC)

    Reconnect Temperature

    131 ºF (55 ºC)


    HEATING FOIL PERFORMANCE

    Heating Temperature Range

    -4 to 41 ºF (-20 to 5 ºC)

    Heating Time

    Approximately 1 hour @ 7.5 A

    BMS Heating Foil Cut-Off

    158 ºF (70 ºC)

    Product Description

    1. Safe - fire resistance
    2. Long cycle life - 95% DOD cycle Over 3000 times
    3. Excellent high-temperature performance - can work well under 60 ° C operating environment
    4. High energy density - lighter and smaller
    5. Maintenance-free type.
    6. No contamination
